FLIR A50/A70 Research and Development Kits | Thermal Cameras
Teledyne FLIR

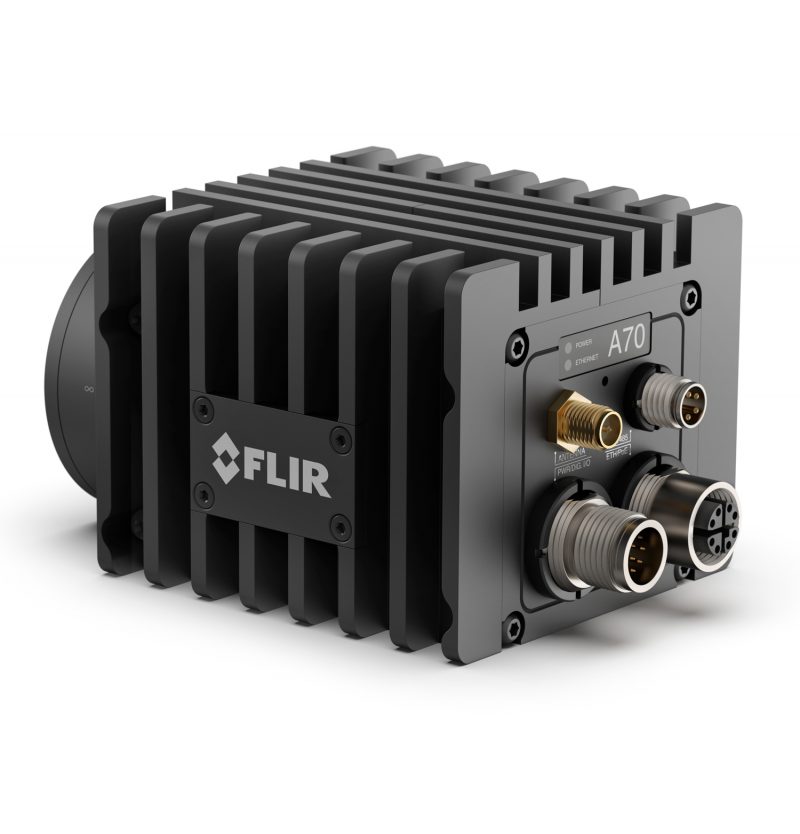

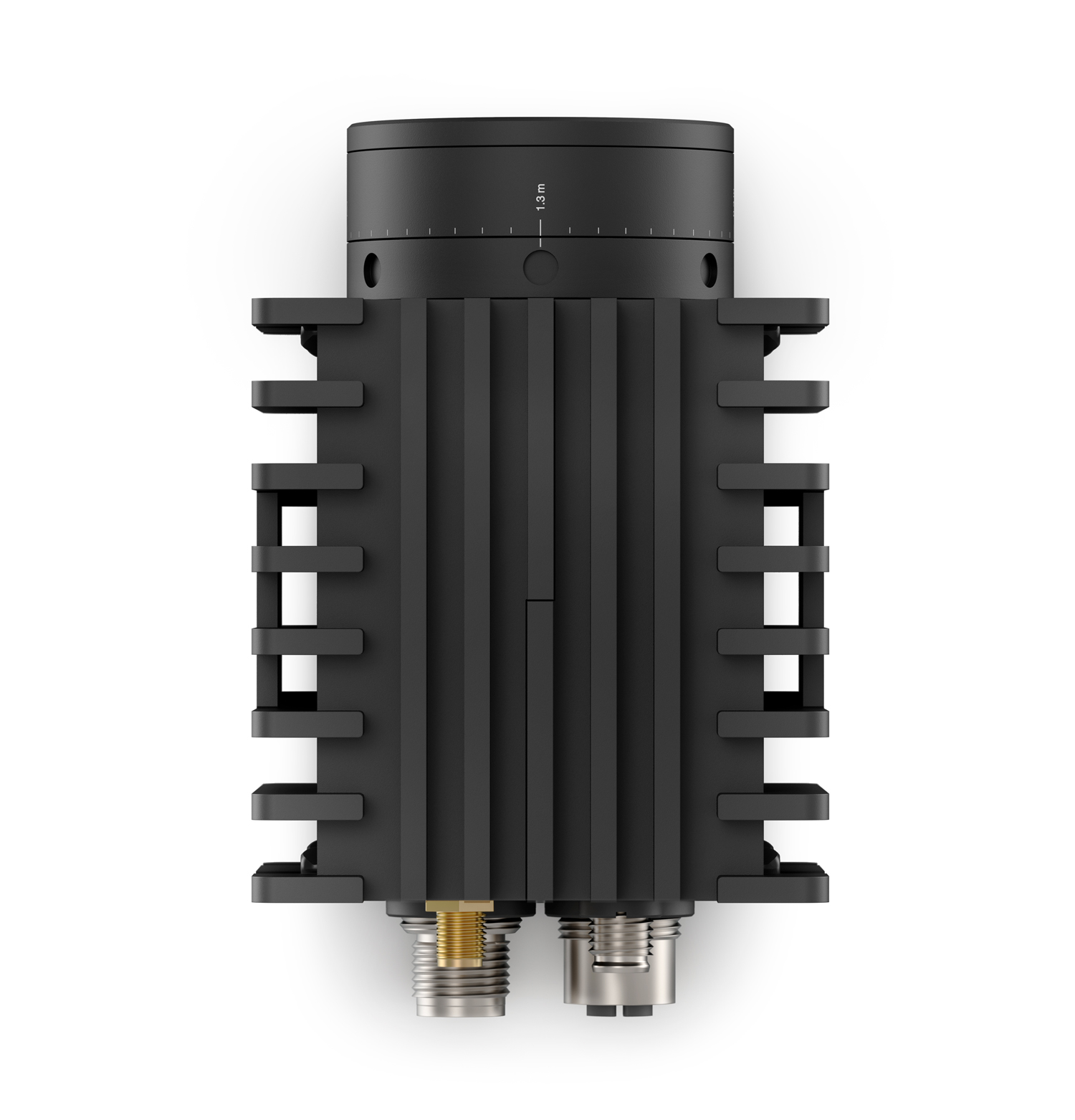

A50 and A70 Research Kits

Buy Online

FLIR A50/A70 Research & Development Kits are affordable, ready-to-use solutions for thermal imaging analysis in proof-of-concept electronics testing and R&D applications. Providing thousands of temperature measurement points, users can eliminate thermal guesswork, reduce product development time, and increase product efficiency and reliability. These kits are the right choice for engineers and technicians who need to fully understand their systems’ thermal profiles or require defensible thermal data to support critical decisions. Users can quickly view, record, analyze and share thermal data with the included FLIR Research Studio software or take advantage of industry-standard connections to integrate into custom software applications when needed.

IMPROVE EFFICIENCY

Quickly reveal thermal characteristics to eliminate guesswork and reduce product development time •Accurately measure temperatures with up to 307,200 thermal measurement pixels (640 × 480 resolution) and ±2°C accuracy •Reveal unknown thermal anomalies faster with quality infrared imagery •Easily differentiate between features and components with the built-in visible camera •Enhance understanding of infrared image data using

FLIR MSX® CAPTURE MEANINGFUL DATA QUICKLY

Start testing sooner with limited ramp-up time and simple non-proprietary industry standard interfaces •Stream full radiometric image data using standard Gigabit Ethernet or Wi-Fi connections •Perform qualitative and quantitative thermal analysis with the included FLIR Research Studio software •Quickly view, record, analyze and share important thermal data across multiple platforms and languages •Compare and examine thermal data simultaneously from multiple connected cameras and recorded data files

RUGGED, COMPACT, AND FLEXIBLE

Meet the demands of multiple application environments and installations •Ensure operation in tough environments thanks to rugged M-style connectors and standard IP66 protection •Easily install this compact camera in any location, with multiple mounting options •Eliminate the need for multiple cables using Power over Ethernet and included Wi-Fi connectivity •Transition from design and testing in the lab to process control in production using non-proprietary GigE Vision and GenICam protocols, as well as SDKs

Metadata

Part No.89829-0201
89929-0201
Product nameFLIR A50 29° Research & Development Kit
FLIR A70 29° Research & Development Kit
Revision82461
82466
Last modified2022-01-142022-01-14

Imaging and optical data

Infrared resolution 464 × 348 pixels
640 × 480 pixels
Thermal sensitivity (NETD) 35 mK 35 mK
Field of view (FOV) 29° × 22° 29° × 22°
Minimum focus distance 0.25 m 0.25 m
Focal length 14.3 mm 14.3 mm
Spatial resolution (IFOV) 1.2 mrad/pixel
0.84 mrad/pixel
f-number 1.4 1.4
Image frequency 30 Hz 30 Hz
Focus Fixed Fixed

Detector data

Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm Uncooled microbolometer/7.5–14 µm
Detector pitch 17 µm
12 µm

Measurement

Camera temperature range
  • –20 to 175°C
  • 175 to 1000°C
  • –20 to 175°C
  • –20 to 250°C
  • 175 to 1000°C
Object temperature range and accuracy (for ambient temperature 15–35°C)
  • Range –20 to 175°C:
    • –20 to 100°C,accuracy ±2°C
    • 100 to 175°C,accuracy ±2%
  • Range 175 to 1000°C:accuracy ±2%
  • Range –20 to 175°C:
    • –20 to 100°C,accuracy ±2°C
    • 100 to 175°C,accuracy ±2%
  • Range –20 to 250°C:
    • –20 to 100°C,accuracy ±2°C
    • 100 to 250°C,accuracy ±2%
  • Range 175 to 1000°C:accuracy ±2%

Measurement analysis

Standard functions N/A N/A
Automatic hot/cold detection N/A N/A
Schedule response N/A N/A
Measurement presets N/A N/A
Atmospheric transmission correction Based on inputs of distance, atmospheric temperature, and relative humidity Based on inputs of distance, atmospheric temperature, and relative humidity
Lens transmission correction Automatic, based on signals from internal sensors Automatic, based on signals from internal sensors
Emissivity correction Variable from 0.01 to 1.0 Variable from 0.01 to 1.0
Reflected apparent temperature correction Based on input of reflected temperature Based on input of reflected temperature
External optics/windows correction Based on input of optics/window transmission and temperature Based on input of optics/window transmission and temperature
Measurement corrections Global object parameters Global object parameters
Measurement frequency N/A N/A
Measurement result read-out N/A N/A

Configuration of camera

Web interface Yes Yes

Video/Radiometric streaming RTSP

Protocol RTSP RTSP
Unicast Yes Yes
Multicast Yes Yes
Multiple image streams Yes Yes
Video streaming
Image quality Bit rate set through Camera web Bit rate set through Camera web
Video streaming, Image source 0:
Resolution (source 0) 640 × 480 pixels 640 × 480 pixels
Contrast enhancement FSX / Histogram equalization (IR only) FSX / Histogram equalization (IR only)
Overlay (source 0) With / Without With / Without
Image source (source 0) Visual / IR / MSX Visual / IR / MSX
Pixel format (source 0) YUV411 YUV411
Encoding (source 0) H.264 / MPEG4 / MJPEG H.264 / MPEG4 / MJPEG
Video streaming, Image source 1:
Resolution (source 1) 1280 × 960 pixels 1280 × 960 pixels
Overlay (source 1) No No
Image source (source 1) Visual Visual
Pixel format (source 1) YUV411 YUV411
Encoding (source 1) H.264 / MPEG4 / MJPEG H.264 / MPEG4 / MJPEG
Radiometric streaming
Resolution (radiometric) 464 × 348 pixels
640 × 480 pixels
Source IR IR
Pixel format (radiometric) MONO 16 MONO 16
Encoding (radiometric)
  • Compressed JPEG-LS
  • FLIR Radiometric
  • Compressed JPEG-LS
  • FLIR Radiometric

Video/Radiometric streaming GVSP (GigE Vision)

Protocol GVSP GVSP
Unicast Yes Yes
Multicast Yes Yes
Multiple image streams No, 1 stream only No, 1 stream only
Video streaming
Video streaming, Image source 0:
Resolution (source 0) 640 × 480 pixels 640 × 480 pixels
Contrast enhancement FSX / Histogram equalization (IR only) FSX / Histogram equalization (IR only)
Overlay (source 0) With / Without With / Without
Image source (source 0) Visual / IR / MSX Visual / IR / MSX
Pixel format (source 0) YUV422 or MONO 8 YUV422 or MONO 8
Encoding (source 0) Un-compressed Un-compressed
Radiometric streaming
Resolution (radiometric) 464 × 348 pixels
640 × 480 pixels
Source IR IR
Pixel format (radiometric) MONO 16 MONO 16
Encoding (radiometric)
  • Temperature linear
  • FLIR Radiometric
  • Compressed JPEG-LS
  • Temperature linear
  • FLIR Radiometric
  • Compressed JPEG-LS

Ethernet

Interface
  • Wired
  • Wi-Fi
  • Wired
  • Wi-Fi
Connector type
  • M12 8-pin X-coded, Female
  • RP-SMA, Female
  • M12 8-pin X-coded, Female
  • RP-SMA, Female
Ethernet, purpose Control, result, image, and power Control, result, image, and power
Ethernet, type 1000 Mbps 1000 Mbps
Ethernet, standard IEEE 802.3 IEEE 802.3
Ethernet, communication
  • GigE Vision ver. 1.2
  • Client API GenICam compliant
  • TCP/IP socket-based FLIR proprietary
  • GigE Vision ver. 1.2
  • Client API GenICam compliant
  • TCP/IP socket-based FLIR proprietary
Ethernet, power Power over Ethernet, PoE IEEE 802.3af class 3 Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet, protocols
  • IEEE 1588
  • SNMP
  • TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP
  • IEEE 1588
  • SNMP
  • TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP

Digital Input/output

Connector type M12 12-pin A-coded, Male (shared with external power) M12 12-pin A-coded, Male (shared with external power)
Digital input 2x opto-isolated Vin(low)= 0–1.5 V, Vin(high)= 3–25 V 2x opto-isolated Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital input, purpose
  • NUC
  • NUC disable
  • Image TAG (Start, Stop, General)
  • Image flow control (acc. SFNC 2.4)
  • NUC
  • NUC disable
  • Image TAG (Start, Stop, General)
  • Image flow control (acc. SFNC 2.4)
Digital output
  • 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C)
  • Solid state opto relay
  • 1x dedicated as Fault output (NC)
  • 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C)
  • Solid state opto relay
  • 1x dedicated as Fault output (NC)
Digital output, purpose
  • Programmatically set
  • Fault (NC)
  • Programmatically set
  • Fault (NC)
Digital I/O, isolation voltage 500 VRMS 500 VRMS

Power system

External power 18 VDC – 56 VDC, Max 8 W 18 VDC – 56 VDC, Max 8 W
Power over Ethernet (PoE) 44 VDC – 56 VDC, Max 8.1 W 44 VDC – 56 VDC, Max 8.1 W
Connector type External power:
  • M12 12-pin A-coded, Max 450 mA(shared with Digital I/O)
PoE:
  • M12 8-pin X-coded, Max 350 mA
External power:
  • M12 12-pin A-coded, Max 450 mA(shared with Digital I/O)
PoE:
  • M12 8-pin X-coded, Max 350 mA

RS-232/485 serial interface

Connector type M8 A-coded, Male M8 A-coded, Male
Prerequisite for use ONVIF must be initiated. ONVIF must be initiated.
Serial communication, purpose Pan & Tilt control Pan & Tilt control
Serial communication, standard Pelco D Pelco D
Serial communication, HW interface RS232 and RS485 exclusively RS232 and RS485 exclusively
Scanlist support Yes Yes

Wi-Fi

Connector type RP-SMA, Female RP-SMA, Female
Standard IEEE802.11a/b/g/n IEEE802.11a/b/g/n
Antenna Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi) Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi)
Connection type Peer to peer (ad hoc)‎ or infrastructure (network)‎ Peer to peer (ad hoc)‎ or infrastructure (network)‎

Environmental data

Operating temperature range
  • With cooling plates on at least three sides:–20 to 50°C
  • No cooling plates: –20 to 35°C
  • With cooling plates on at least three sides:–20 to 50°C
  • No cooling plates: –20 to 35°C
Storage temperature range IEC 68-2-1 and IEC 68-2-2, –40 to 70°C for 16 hours IEC 68-2-1 and IEC 68-2-2, –40 to 70°C for 16 hours
Humidity (operating and storage) IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C/2 cycles EN60068-2-38 IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C/2 cycles EN60068-2-38
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17 (radio)
  • EN 61000-4-8 (magnetic field)
  • FCC 47 CFR Part 15 Class B (emission US)
  • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  • EN ISO 14982 (EMC - Agricultural and forestry machinery)
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17 (radio)
  • EN 61000-4-8 (magnetic field)
  • FCC 47 CFR Part 15 Class B (emission US)
  • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  • EN ISO 14982 (EMC - Agricultural and forestry machinery)
Radio spectrum
  • FCC 47 CFR Part 15 Class C (2.4 GHz band US)
  • FCC 47 CFR Part 15 Class E (5 GHz band US)
  • RSS-247 (2.4 GHz and 5 GHz band Canada)
  • ETSI EN 300 328 V2.1.1 (2.4 GHz band EU)
  • ETSI EN 301 893 V2.1.1 (5 GHz band EU)
  • FCC 47 CFR Part 15 Class C (2.4 GHz band US)
  • FCC 47 CFR Part 15 Class E (5 GHz band US)
  • RSS-247 (2.4 GHz and 5 GHz band Canada)
  • ETSI EN 300 328 V2.1.1 (2.4 GHz band EU)
  • ETSI EN 301 893 V2.1.1 (5 GHz band EU)
Encapsulation IEC 60529, IP66 IEC 60529, IP66
Shock IEC 60068-2-27, 25 g IEC 60068-2-27, 25 g
Vibration
  • IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal
  • IEC 61373 Cat 1 (Railway)
  • IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal
  • IEC 61373 Cat 1 (Railway)
Safety IEC 62368-1 (IT equipment audio-visual products) IEC 62368-1 (IT equipment audio-visual products)
Corrosion
  • ISO 12944 C4 G or H
  • EN60068-2-11
  • ISO 12944 C4 G or H
  • EN60068-2-11

Shipping information

Packaging, type Hard case Hard case
Packaging, contents
  • Camera with Advanced Image Streaming configuration and 29° lens
  • Hard case
  • Ethernet cable M12 to RJ45, 2 m
  • Ethernet cable M12 to RJ45F, 0.3 m
  • Ethernet cable CAT6, 2 m/6.6 ft
  • Cable M12 to pigtail, 2 m
  • Gigabit PoE injector 16 W, with multi-plugs
  • Antenna WLAN 2.4/5 GHz + Wi-Fi
  • Cooling plate
  • Focus adjustment tool
  • Visual camera including MSX
  • Research Studio, Standard Edition - 1 Year Subscription (Online Activation)
  • Printed documentation including the username and password for log in to the web interface of the camera
  • Camera with Advanced Image Streaming configuration and 29° lens
  • Hard case
  • Ethernet cable M12 to RJ45, 2 m
  • Ethernet cable M12 to RJ45F, 0.3 m
  • Ethernet cable CAT6, 2 m/6.6 ft
  • Cable M12 to pigtail, 2 m
  • Gigabit PoE injector 16 W, with multi-plugs
  • Antenna WLAN 2.4/5 GHz + Wi-Fi
  • Cooling plate
  • Focus adjustment tool
  • Visual camera including MSX
  • Research Studio, Standard Edition - 1 Year Subscription (Online Activation)
  • Printed documentation including the username and password for log in to the web interface of the camera
Packaging, weight 2.83 kg 2.83 kg
Packaging, size 370 × 290 × 149 mm 370 × 290 × 149 mm
EAN-13 7332558028056
7332558028087
UPC-12 845188024314
845188024345
